Unimes i70 is a perfect type of terminals with large screen and single handed operation. More stabilized high speed data collection and transmission. Whole performance and superb cost performance balance
Extremely speedy data collection

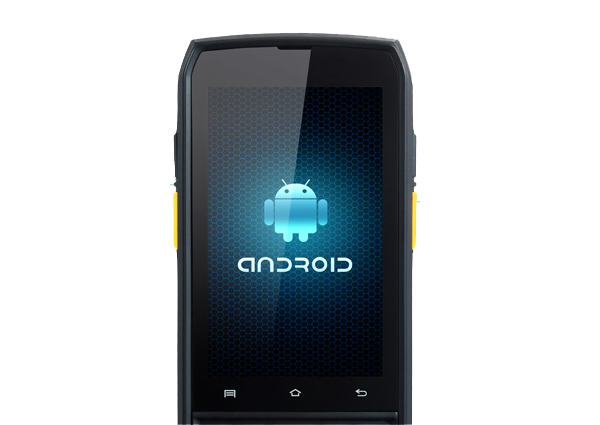

Based on Android Operating System, running stably, safely and smoothly
1D, 2D scanning engine
5G WIFI, transmission speed increased by 300%
Dual-frequency free switching

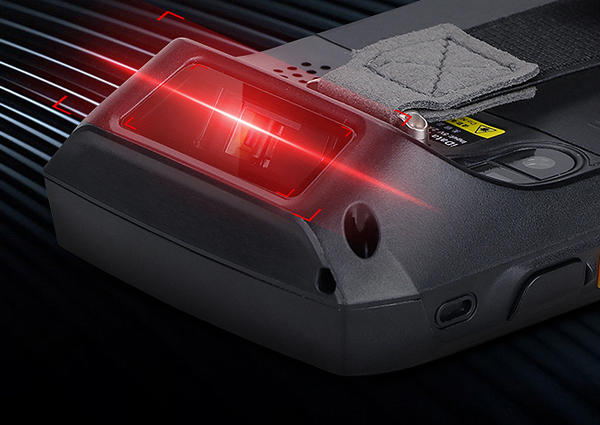

User-friendly design of scanning angle
With the brand new design ergonomic scanning angle, effectively reduce wrist motions and fatigue, easy to scan and verify.
Reasonable key layout.
Bluetooth4.0 wireless connection
Bluetooth4.0 low power consumption, fast connection, stable signal
Compatible with mainstream printing systems
Peformance Parameter | |
Operating system | Android 6.0 |
Processor | High-performance quad-core 1.3 GHz processor |
Memory | 16 GB ROM+2 GB RAM |
Extended slot | Micro SD card, up to 32 GB |
Display screen | 4 inch, 800 x 480 |
Camera(optional) | 8 MXP autofocus camera in the back side, autofocus lens, LED flash |
Touch Panel | Industrial-grade capacitive panel |
Battery | 3.8 V 5000 mAh rechargeable lithium polymer battery |
Dimensions | 159 mm×71 mm×20 mm |
Weight | 262 g (battery included) |
Key | 20 front keys, 4 side keys, Durable industrial IMD keypad with interior transmission light |
Notification | Vibrator alerts/LED/Audio notification |
Audio | Built-in microphone /Micro USB |
Vibration Motor | Built-in programmable vibration motor |
Environmental Parameter/IP Rate | |
Working Temperature | -20℃ ~ 60℃ |
Storage Temperature | -40℃ ~ 60℃ (battery included);-40℃ ~ 70℃ (battery not included) |
Electrostatic | Conforms to ± 15 kV air discharge, ± 8 kV direct discharge |
Relative humidity | 0 ~ 95% (non-condensing) |
Protection grade | IP65 grade |
Anti-dropping | 1.5-meter drops to concrete ground |
Communication Data Parameter | |
Wireless LAN | Wi-Fi 802.11a/b/g/n |
Bluetooth | Bluetooth 4.0+EDR, Supporting BLE |
Network frequency | GSM900/1800/1900MHz, CDMA BC0 (800MHZ) |
WCDMA band 1/2, TD-SCDMA band 34/39 | |
TDD-LTE band 38/39/40/41, FDD-LTE band 1/3/7/8/20 |
