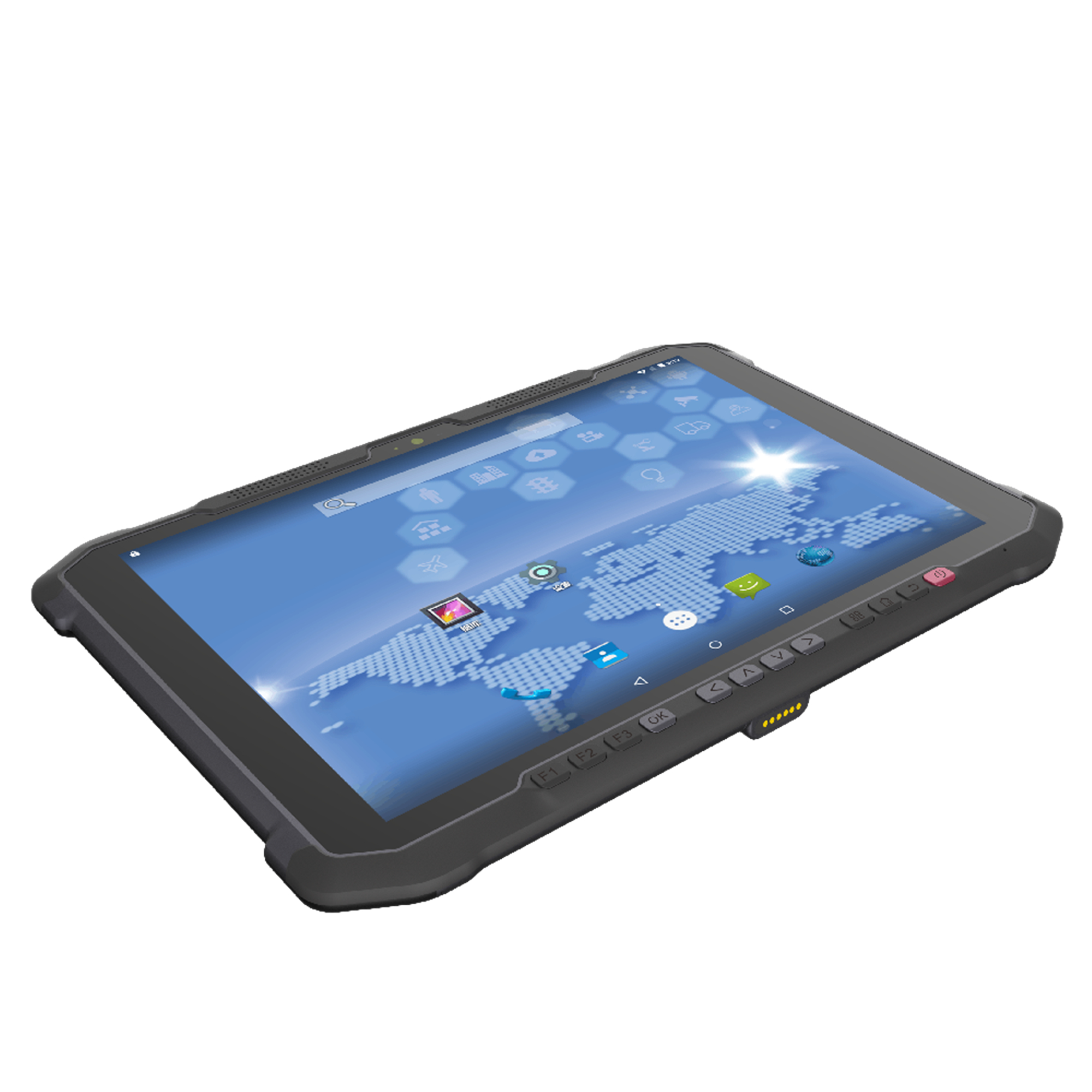

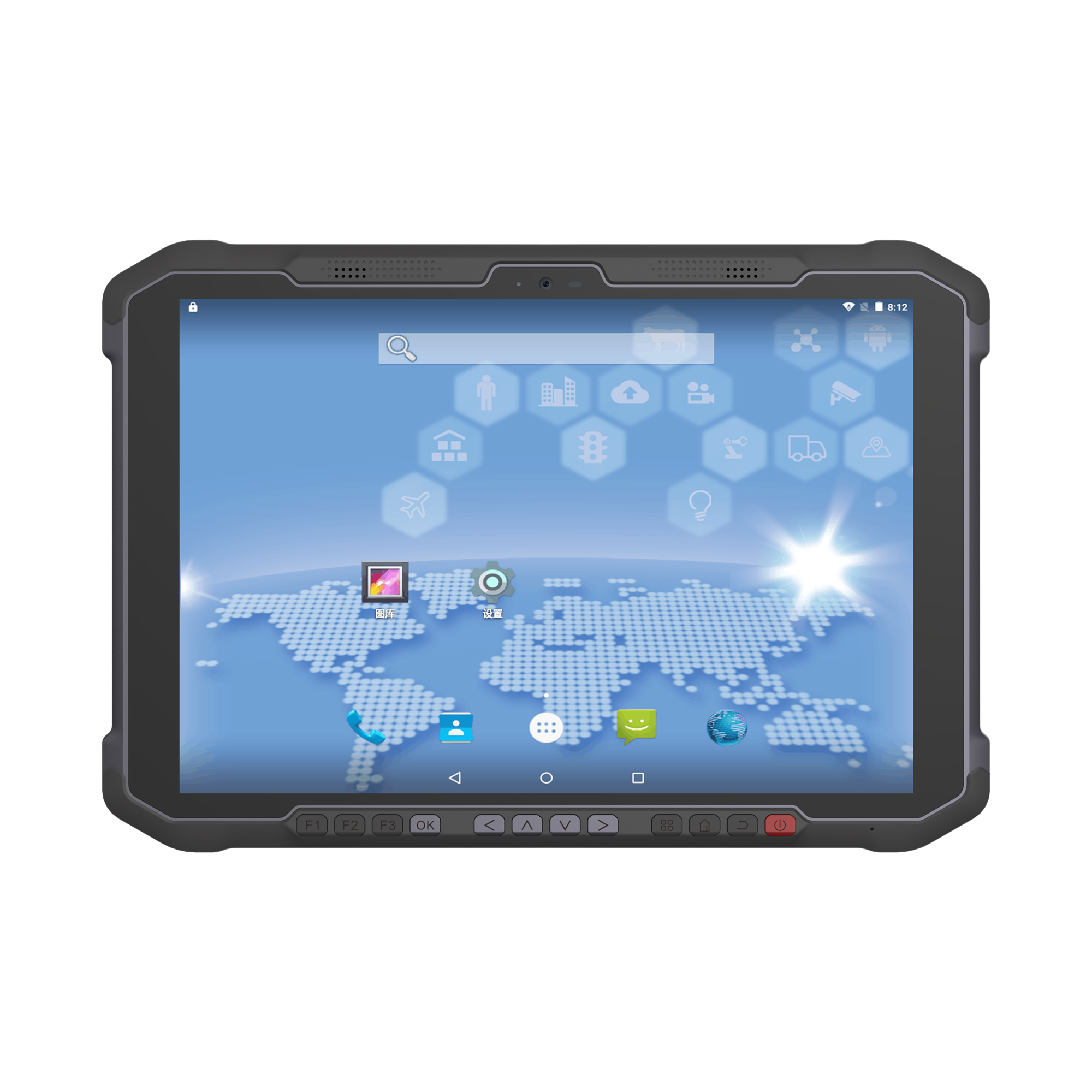

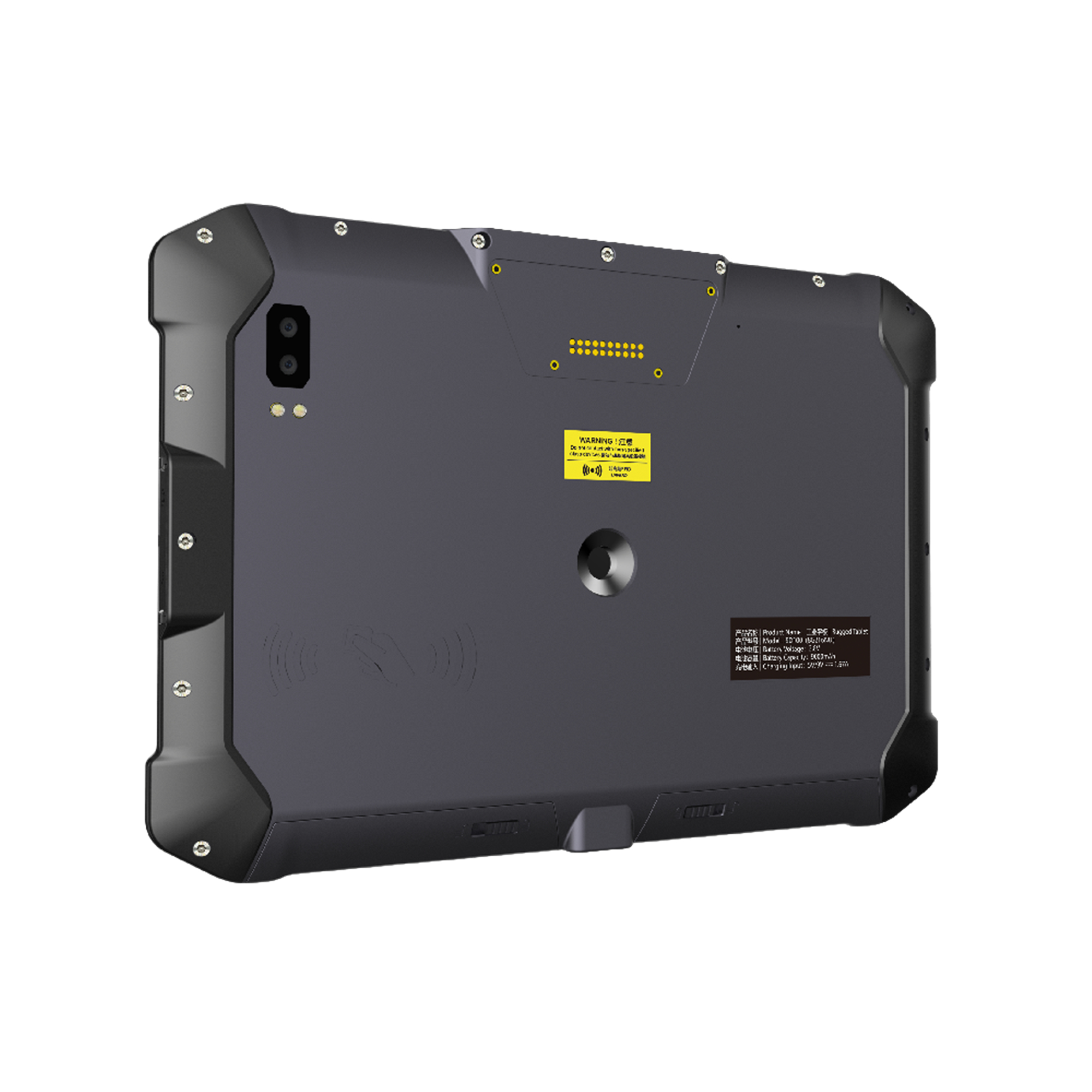

Unimes UD100 Industrial Tablet


10 Inch 1920*1200 HD resolution super large screen,  9000mAh large capacity removable battery, Android 8.1 OS with Octa-core 2.0 GHz, ultra-speed Qualcomm Snapdragon 625  processor, deeply optimized software, and the workflow is infinitely smooth.


Features Specification Media Download
Unimes UD100

Brand new generation Smart Rugged Tablets

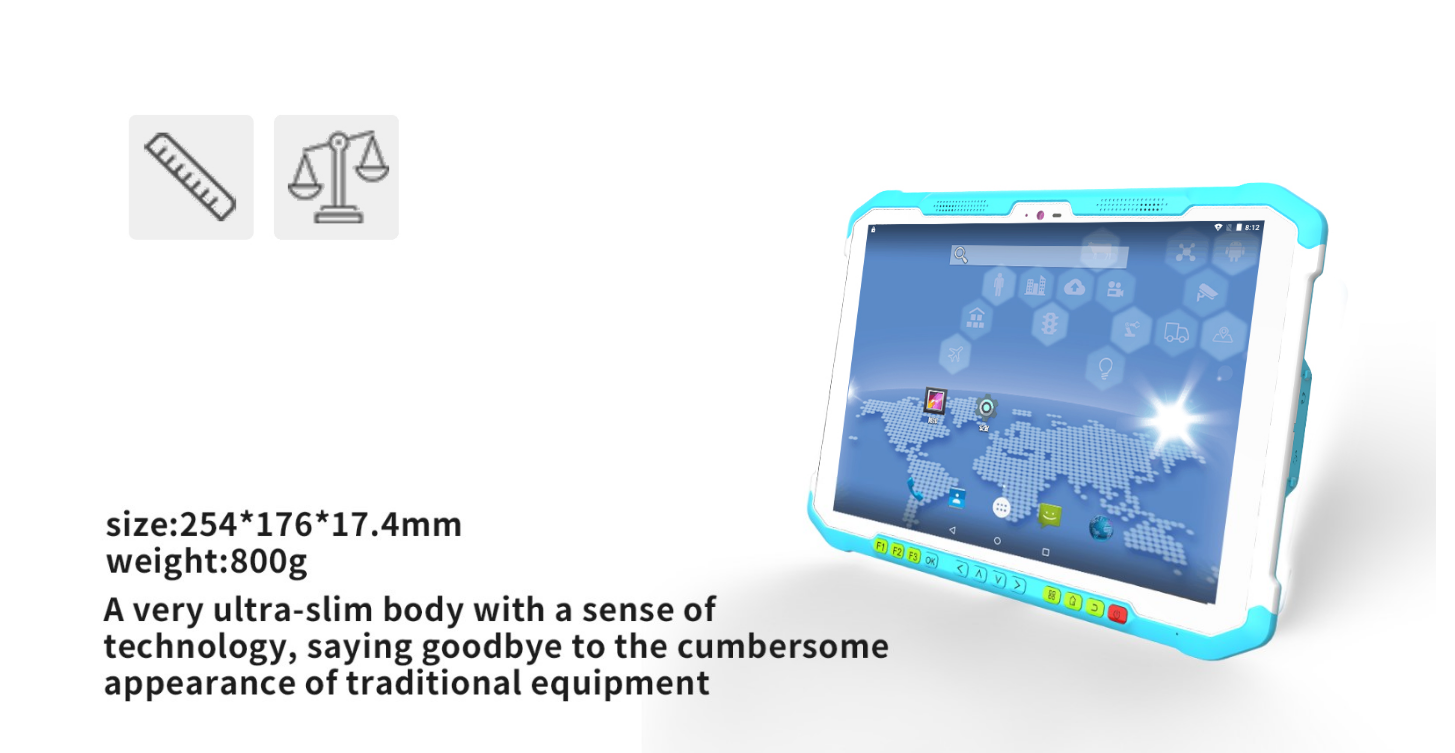

Ultra-slim frame with IP65 protection, bid farewell to the heavy shape of  traditional terminal equipment


Unimes UD100

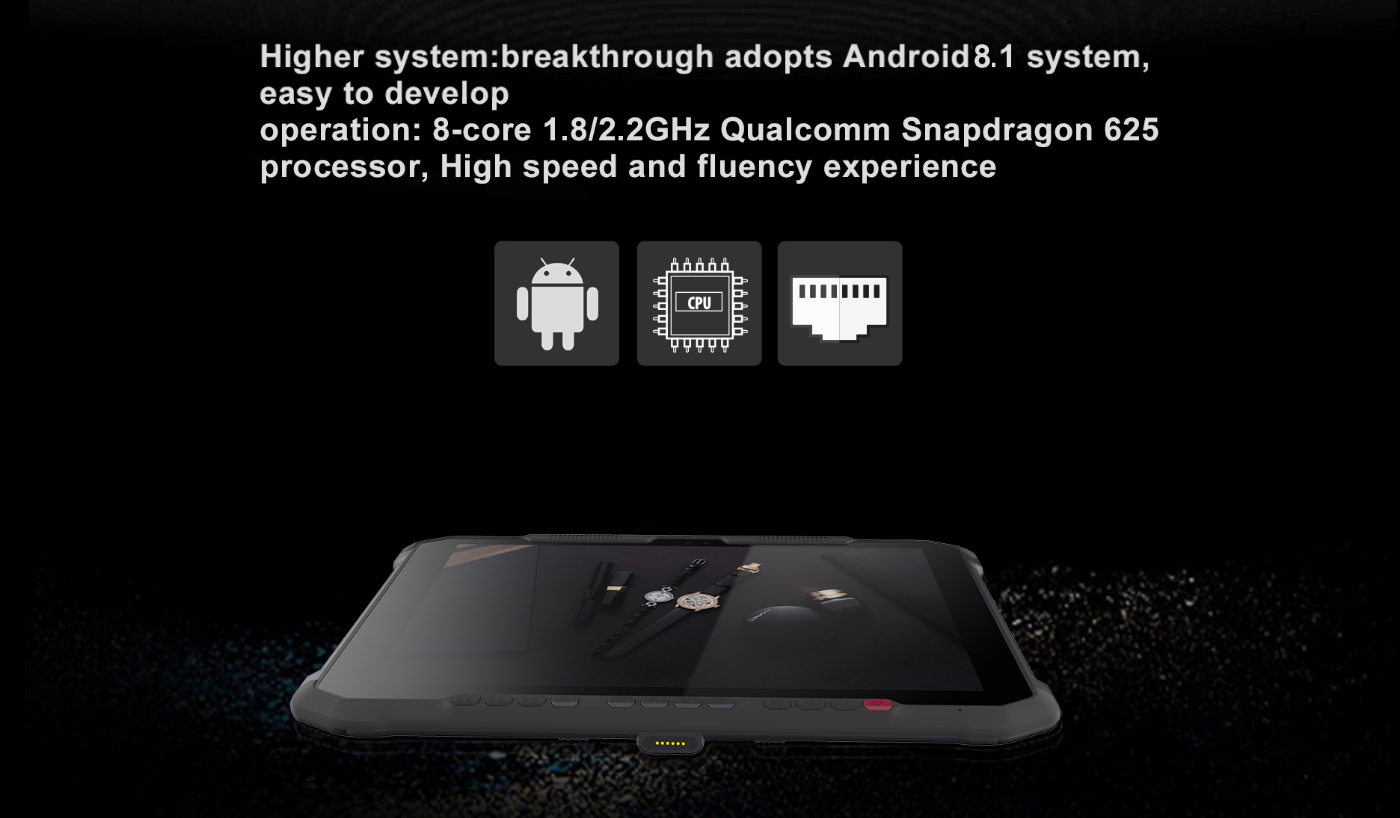

Industrial-grade optimization, absolutely powerful


Equipped with the industry's top Qualcomm Snapdragon 625 octa-core processor, with Android 8.1 platform, deeply optimized software, and the workflow is infinitely smooth.

Unimes UD100

Technology can also be so beautiful


Unimes has been focusing on showing its own creativity in the field of industrial design. The shell has both protection and beauty. At the same time, it uses medical-grade antibacterial materials to do its best for the user experience.

Unimes UD100

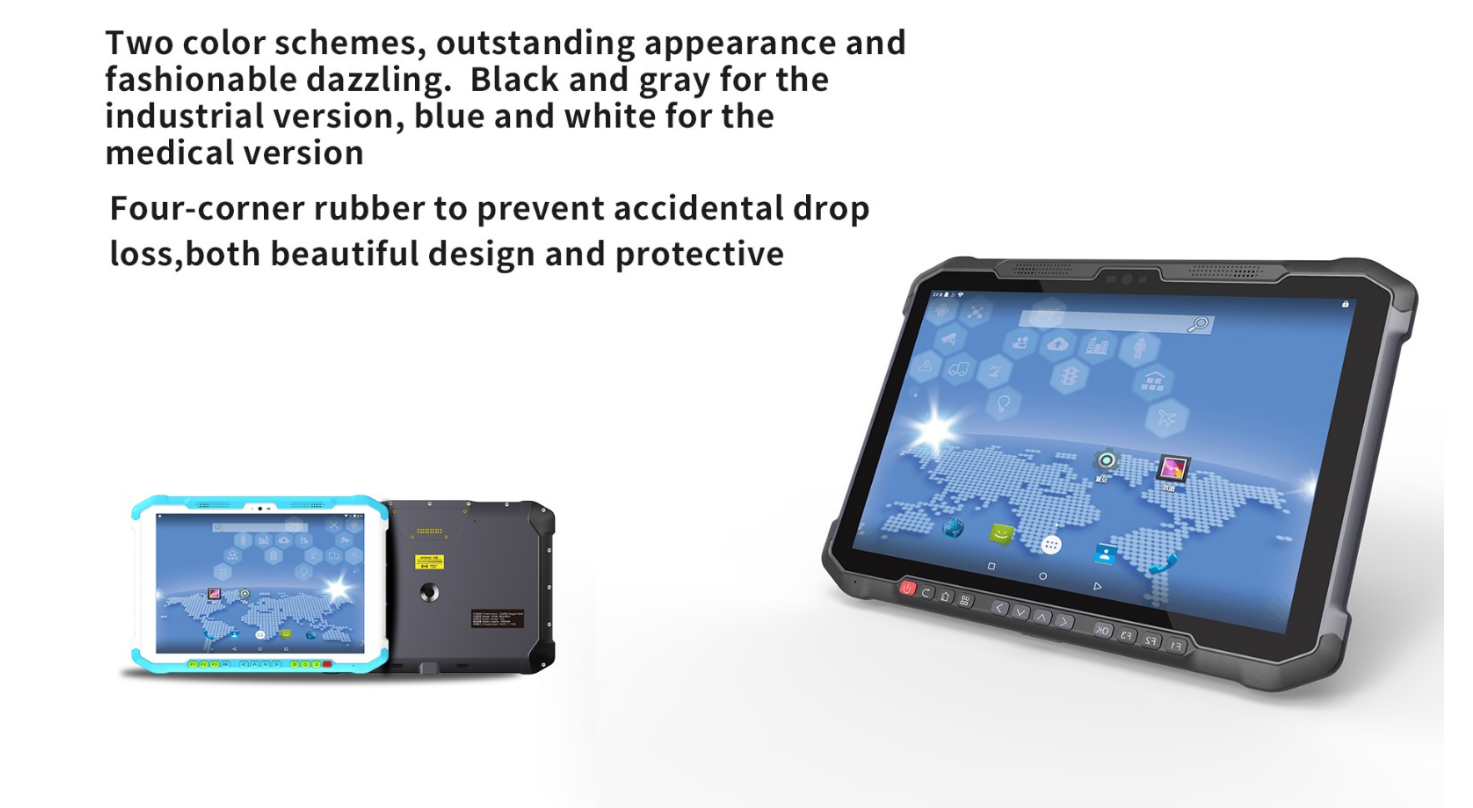

Exquisite and elegant


Unimes has always had its own persistence in industrial design. We always believe that technology products can also have a beautiful appearance, worthy of the reputation of being consistent.


Unimes UD100

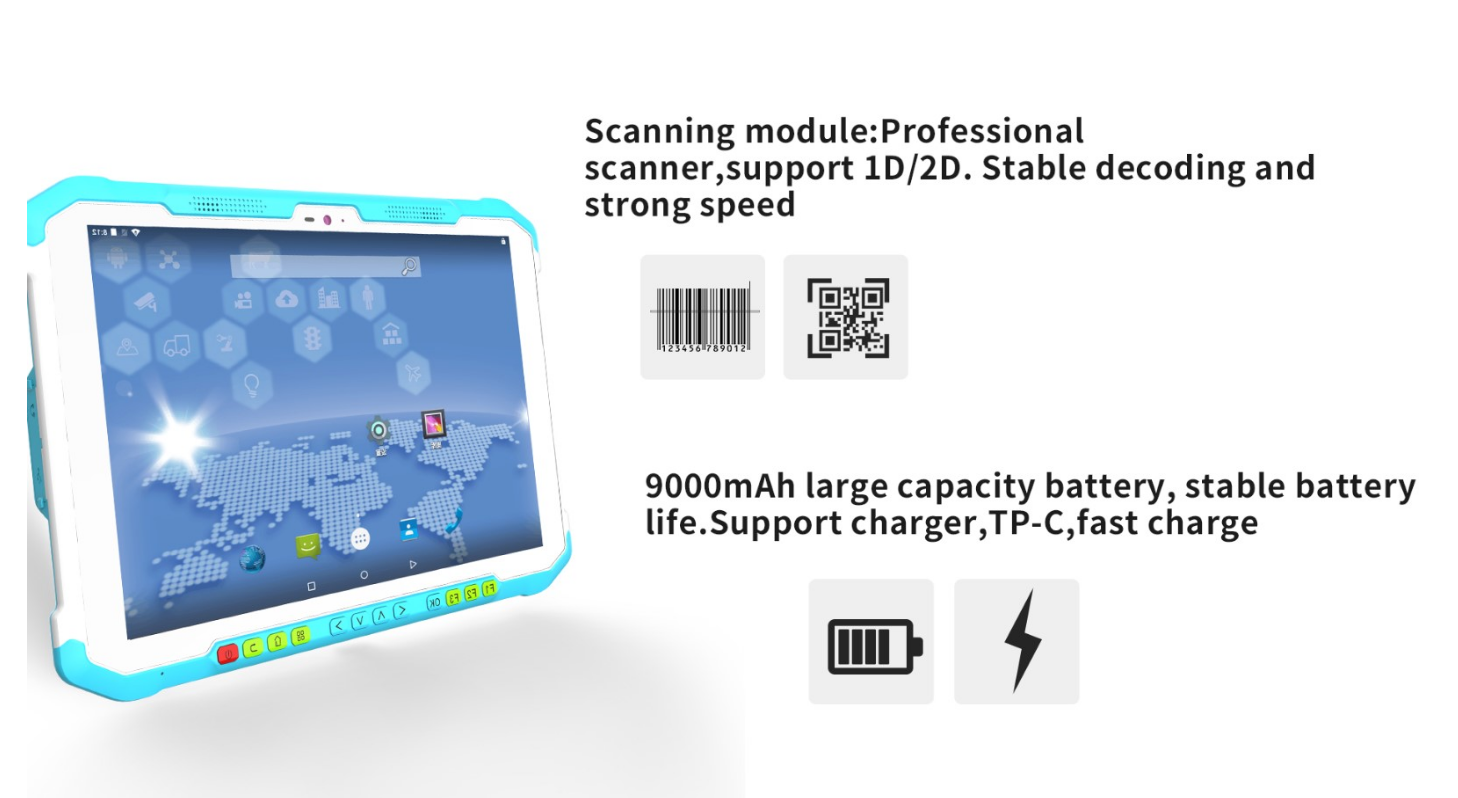

Impeccable data collection


Perfectly respond to 1D/2D barcodes, the highest support UHF RFID module, high speed, and stability, with 9000mAh large battery, battery life is worry-free


Unimes UD100

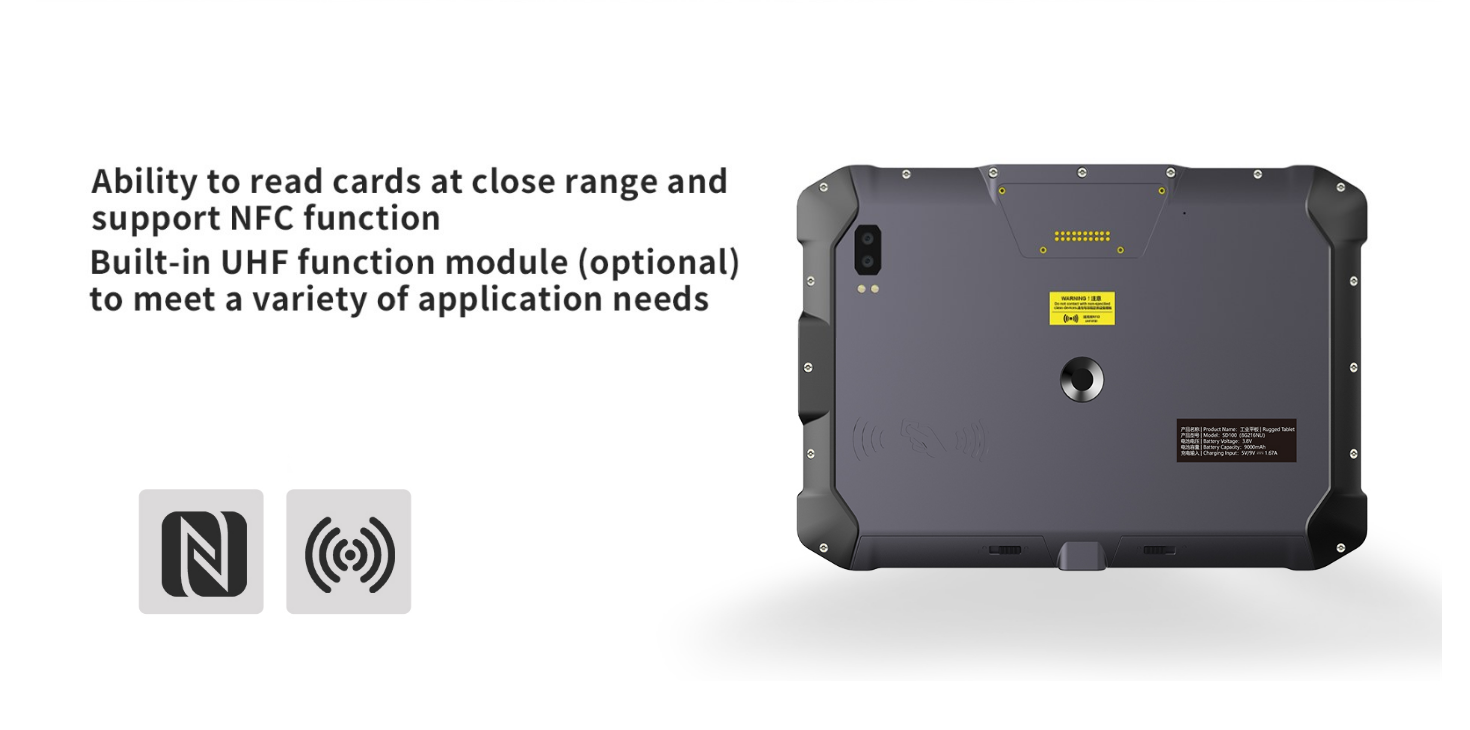

Master RFID function realization


It can handle perfectly from NFC to UHF, opening up all functions in the AIDC field


Unimes UD100

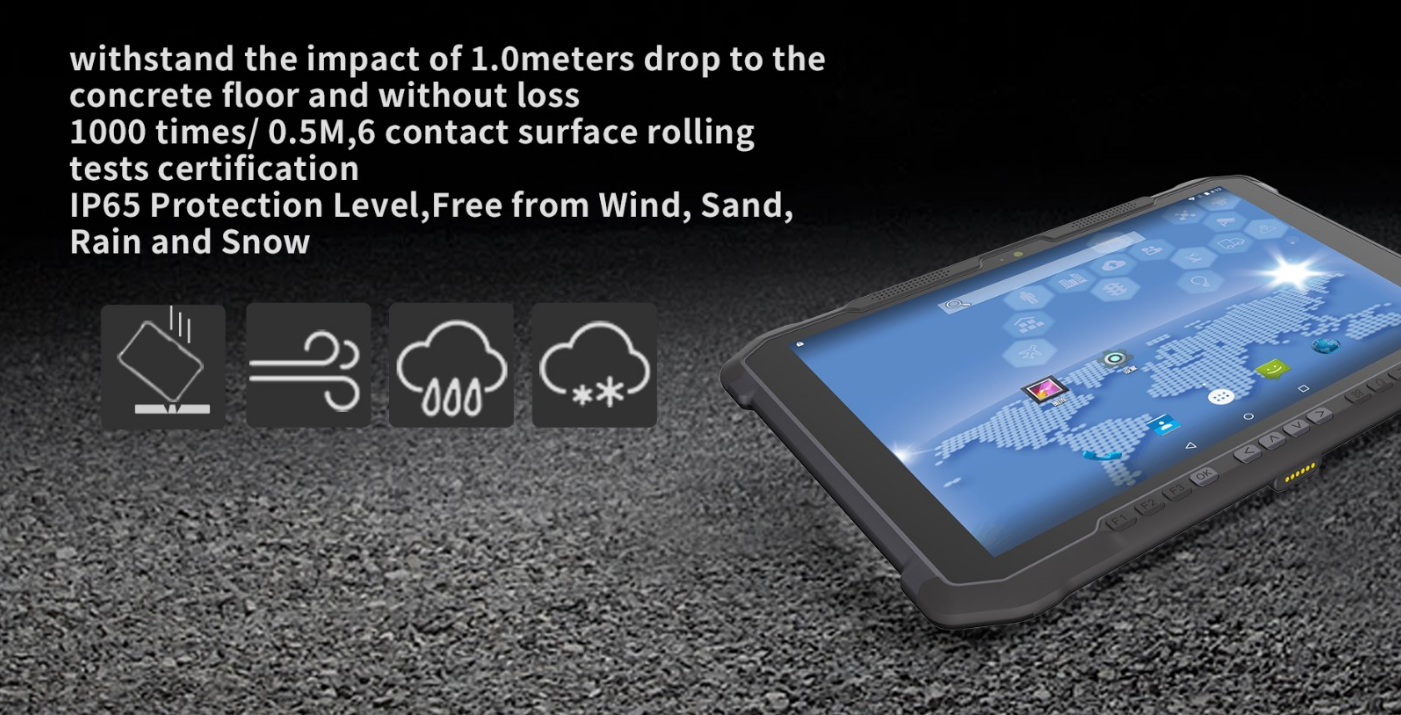

Accessibility in all scenes


Use barrier-free in various extreme environments, IP65 protection blessing, bid farewell to the fear of use scenes


Specification
ModelUD100
CPUOcta-core 2.0GHz
OSAndroid 8.1
RAM4GB
ROM64GB
CameraRear camera 13MP AF with LED flash, Front Camera 5MP FF
Display size/type10 inch, IPS highlight screen
Resolution1200*1920
Touch Screen5-point capacitive touch screen
Size254mm*176mm*17.4mm
Weight(with battery)800g
Battery capacity9000mAh, the typical working time  not less than 10 hours
ChargingPE fast charging, support charger
BluetoothBT4.1 BLE
Wi-FiIEEE 802.11 a/b/g/n 2.4G 5Gdual frequency
WWLANFDD-LTE B1/B3/B5/B7/B8
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0/BC1
GPS positioning moduleGPS+BD+GLONASS
AudioFront dual stereo speakers, Volume 90db±3db(test distance 10cm)
SensorGsensor, Ambient light sensor,  Proximity Sensor, COMPASS
ExpansionMicro SD(TF) card slot up to 128GB
InterfaceUSB-TypeC, external expansion interface Pogo (USB, serial, IIC, power supply, etc.), 3.5mm headphone jack, charging base Pogo
Keypad12 buttons
NotificationSound, Vbration, LED prompt
Operating temperature-20℃ to  +55℃
Storage temperature-30℃ to +70℃
Working Humidity5% to 95%
ESD±15kV Air Discharge, ±8kV Contact Discharge
CertificateCCC、CE
PSAM card (smart encryption card)optional
RFID (High frequency)Supporting Protocol : ISO14443A/B, ISO15693, NFC reading distance: 0~5cm
RFID (Ultra High Frequency)optional
Protocol standard: ISO18000-6C protocol
Working frequency:
China (920-925MHz)
North America (902-928MHz)
European frequency (865-867MHz)
Antenna parameters: ceramic antenna (1.5dBi)
Power: working voltage 4-5V, RF output 5dBm to 30dBm(1W), 1dBm adjustable;
Standby power consumption: about 0.25W, maximum 5W(typical 4W)
Identification range: indoor >12m, outdoor open environment >6m
Group read rate: >200 tags per seconds
Barcode scanning
Support code system
CM60
Support code system:EAN13, EAN8, UPCA, UPCE, Code 128, Code 39, Codabar, UCC/EAN128, RSS,ITF, ITF14, ITF6, ISSN, ISBN, Standard 25, Matrix 25,Industrial 25,Plessey, MSI Plessey, Code 11, Code 93, PDF417, QR Code, DataMatrix, AZTEC, Hanxin Code, Maxicode, Micro QR,Micro PDF417, Composite
