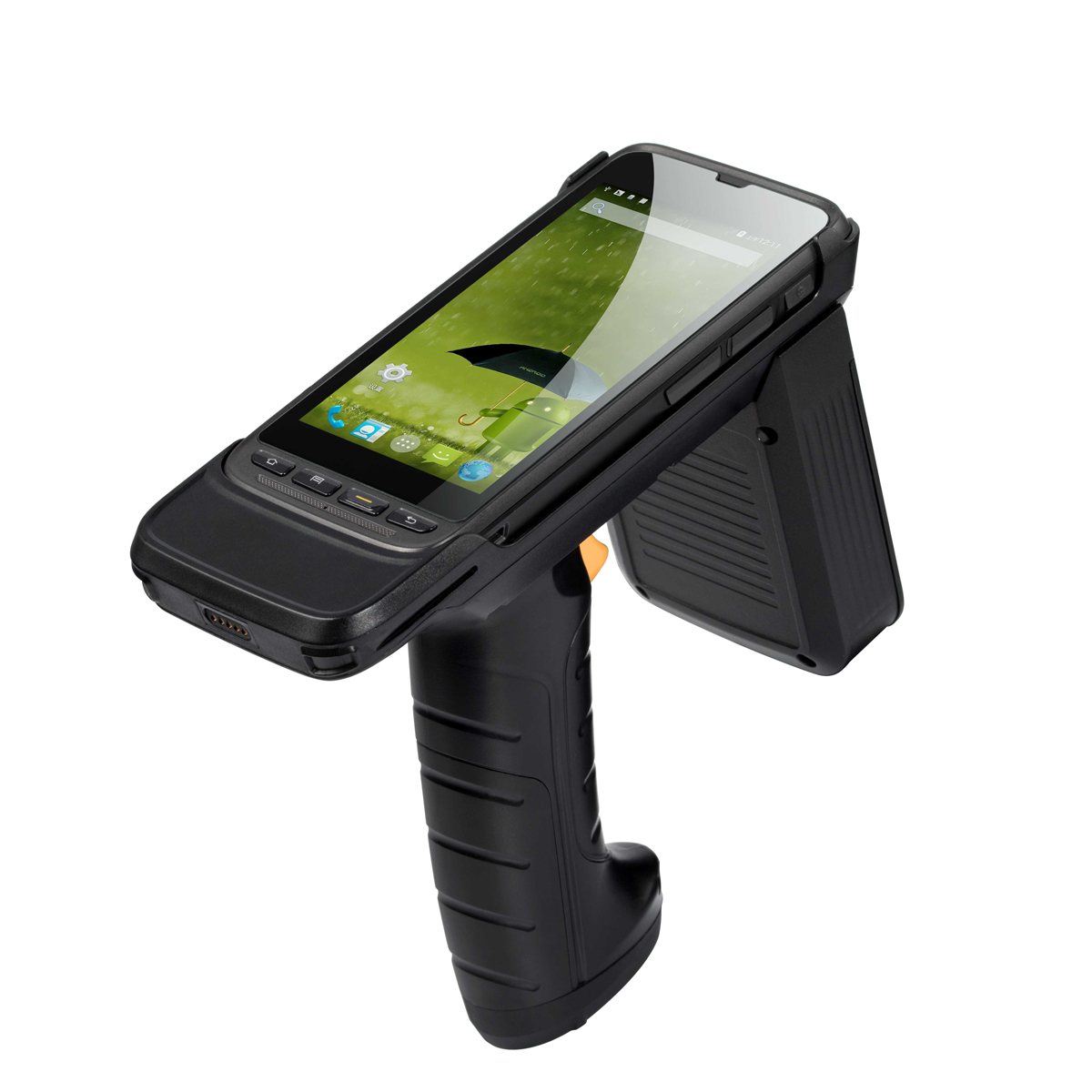

Based on Unimes i50's newly upgaded UHF enterprise mobilepplication handheld device, equipped wth high-perfor-mance UHF red and write modules, read/wrte infomationis faster and more accurate, Large capacity battery andexcellent coling effect to ensure that users continue ef-cient and stable operation; Fiexible structure, fully meet the needs of different scenarios
4.7inch large, 1280 x 720 High resolution screen supports operating with gloves or wet hands.
Convenient and Comfortable Handle for long time usage
Excellent UHF RFID read/write, read and write distances up to 10 meters.
read rate ≥200tags/s.
1D or 2D scan engine.
13.56MHz NFC, read up to 30 mm(optional).
8MP Rear camera (optional).GPS (optional).
PDA internal battery 3300 mAh with grip battery 5200 mAh, can work for more than 12 hours
The optional 3.7V,3300mAh battery satisfied work in multiple shifts.
Faster and More Stable Wireless Data Transmission.
FDD-LTE/TD-LTE 4G wireless communication
5G WIFI transmission technology
System Configuration | |
CPU: | Octa-core 2.0 GHz |
Operating System: | Android 9.0 |
Memory (ROM + RAM): | 16 GB +2 GB (optional 128GB+ 6GB/64GB+ 4GB/32GB + 3GB) |
Expansion Slot: | Micro SD card, up to 256 GB |
Display: | 4.7 inch, 1280 x 720 high resolution |
Touch Panel: | Industrial-grade capacitive touch panel (supporting operation with gloves) |
Camera : | 8 MP autofocus camera in the back side (13 MP optional), 5MP front camera optional |
Exit Window: | Corning Gorilla glass |
Keypad: | 4 front keys, 4 side keys, Power key (can be set as customized key) |
Battery: | 3600mAh rechargeable lithium polymer battery (PDA) + 3.7V 5200 mAh (pistol grip) |
Audio: | Built-in microphone /Micro USB/Headphone connector |
Notification: | Vibrator alerts/LED/Audio notification |
Vibration Motor: | Built-in programmable vibration motor |
Sensor: | G-Sensor/Proximity sensor/Light sensor |
Structural Parameters | |
Dimensions (LxWxD): | PDA: 150 mm x 73.5 mm x 16 mm(head 24mm thick) |
PDA + handle:175mm x 89mm x 165mm | |
Weight: | PDA(include battery)+ pistol grip(with RFID)710g |
PDA(include battery)+ pistol grip(without RFID)530g | |
Communication Transmission | |
Wireless WAN | Asia & Europe: |
(Network frequency) | 2G:B2/B3/B5/B8 |
3G:WCDMA:B1/B2/B5/B8 CDMA BC0 TD-SCDMA:B34/B39 | |
4G:FDD-LTE:B1/B3/B7/B8/B20 TDD-LTE:B34/B38/B39/B40/B41 | |
America: | |
2G: B2/B3/B5 | |
3G: B1/B2/B4/B5; CDMA BC0/BC1 (U.S.A) | |
4G: B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41 | |
Wireless WAN (Data service): | GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE |
Wireless LAN: | Wi-Fi 802.11ac/a/b/g/n/r 5G PA (Dual-band Wi-Fi:2.4G+5G) |
Bluetooth: | Bluetooth 5.0 |
GPS: | GPS/AGPS/Beidou Compass/Galileo/Glonass |
Operating Environment | |
Development Tools: | Android SDK+JDK+Eclipse |
Programming Language: | Java |
Operating Temp.: | -20℃ ~ 60℃ (-4℉ ~ 140℉) |
Storage Temp.: | -40℃ ~ 60℃(-40℉ ~140℉ )battery included |
-40℃ ~ 70℃(-40℉ ~158℉)battery not included | |
Relative Humidity: | 0 ~ 95% (non-condensing) |
Sealing: | IP65 |
Electrostatic Discharge: | 15 kV air discharge, 8 kV direct discharge |
1D Laser Scanner | |
Scan Precision: | 5mil |
Rotate Angle: | ±35° |
Pitch Angle: | ±65° |
Skew Tolerance: | ±50° |
Ambient Light: | Sunlight: 10,000ft. Candles (107,640Lux) |
Artificial: 450ft. Candles (4,844Lux) | |
Scan Frequency: | 104±12 times/second |
Laser Safety Grade: | Class II |
Code Support: | UPC/EAN, POST, Code 128, Code 39, Code 93, Code 11, Coda bar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSSI etc. |
1D / 2D Area Imager | |
Scan Precision: | 3mil c39/128 |
Rotate Angle: | 360° |
Pitch Angle: | ±45° |
Skew Tolerance: | ±65° |
Scan Frequency: | 50ms |
Laser Safety Grade: | Class II |
Image Resolution: | 844(H)×640(V) |
Image Frame: | 60fps |
Light Source System: | White light, laser aiming |
Minimum Printing Contrast: | 20% |
Code Support: | Aztec Code , Codabar , Codablock F , Code 11 , Code 128 , Code 2 of 5 , Code 39 , Code 93 , Data Matrix , EAN/JAN-13 , EAN/JAN 8 , EAN-UCC Composite Codes , EAN-UCC Emulation , IATA Code 2 of 5 , Interleaved 2 of 5 , Matrix 2 of 5 , MaxiCode , MicroPDF417 , MSI , PDF417 , Postal Codes ( Australian Post , British Post , Canadian Post , China Post , Japanese Post , Korea Post , Netherlands Post , Planet Code , Postnet ) , Plessey Code , PosiCode , QR Code , RSS Expanded , RSS Limited , RSS-14 , TCIF Linked Code 39 , Telepen , Trioptic Code , UPC-A , UPC-E etc |
RFID (Optional) | |
Frequency: | 902MHz-928MHz,865MHz-868MHz(Customize according to required band) |
Protocol: | ISO18000-6B/6C/6D(According to required band) |
Antenna: | 4dBi circularly polarized antenna |
Output power: | 5-30dbm adjustable |
Data Capture Range: | 10m(depends on labels) |
Input/Output Ports | |
USB Port: | 1 (Micro USB port) |
Charger Port: | 1 |
OTG: | Support |
Accessories | |
Standard: | Battery, Power adapter, 3 in 1 cradle, USB cable |
Optional: | Debug connection line |
