Unimes U8100


U8100 Rugged Industrial Tablet


Unimes U8100 8.0" rugged industrial tablet suit for all kinds of application, included banking, manufacturing, aviation, warehouse, and all you can imagine.


Features Specification Download
Unimes U8100

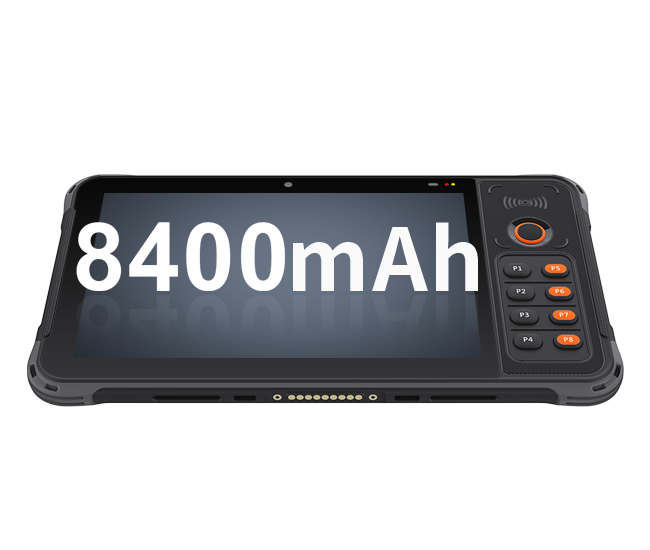

Replaceable large-capacity battery


8400mAh Li-ion battery supported extremely long battery lasting time. The replaceable and quick-change design allows P8100 to always ready for any challenge anytime, anywhere and anyplace.


Unimes U8100


Expand your vision with a giant screen


8-inch air bonding TFT color screen shows a giant display area and gives you all information at a glance. Optional electromagnetic resonance touch panel, support specific digital signature for high-security banking requirement.


Unimes U8100


Embedded scan engine, incredible scan experience


Build-in 1D/2D barcode scan engine makes high speed and accurate data collection possible? Whether your barcode is defaced, twisted, or folded, all-new error correction algorithm can automatically adapt.


Unimes U8100


More ruggedize, more endurable


IP67 water resistance authorized and 1.2m dropping military test certified, endurable under heavy duty.


Unimes U8100


Optical fingerprint module


Optical fingerprint module with a large collection sensor. Dual certification of FAP30 and PVI supports specific professional data format application.


Specification
Performance Characteristics
CPUOcta-core Cortex-A53, 1.8 GHz
MemoryRAM:4GB,ROM:64GB
Extended memoryMicro SD card, up to 256GB
O.S.Android 9 Pie with GMS(Google Market Service)
Urovo Home: FeatureSet, U-Setting, ScanWedget, Autoinstall, AppMarket, UMS.
Basic Characteristics
Display8 inch display, 1920×1200(FHD)
8 inch display, 1280×800(HD) (optional)
8 inch electromagnetic display, 1920×1200(FHD) (optional)
Touch panelCapacitive:Multiple touch screen, support gloves, wet finger and passive stylus.
Electromagnetic(optional): Multiple touch screen, support gloves, wet finger and passive stylus signature.
Dimensions(L×W×H)253.8*146*16.5mm(10.0*5.7*0.6 inch)
Weight728.5g(25.7oz.)
Main batteryCapacity: 3.8V 8400mAh
Battery life: 8-10h(depends on environment and use case)
Charging time<4 hours(with QC3.0 adapter) (room Temperature)
AudioDual-speakers, Dual microphones, audio jack
ButtonsVol+/-, power key, scan key, P1~P8 function key
Vol+/-, power key, scan key(Fingerprint model)
SensorsLight sensor, accelerator sensor, geomagnetic sensor, gyro sensor
FingerprintFBI/PIV certified optical fingerprint module
SlotsMicro SD/TFx1、Nano-SIMx2, PSAMx1
I/OUSB type C, POGO pin
Data Capture
Scanning1D/2D barcode reader
Can read all international standards1D/2D barcode;
Can read barcode displayed on screens and colored barcode
CameraFront 5M Pixels, Rear 13M Pixels, Flashlight
NFCISO 14443 Type A and B; FeliCa/Mifare and ISO15693 cards;
Reader mode, P2P mode, Card Emulation mode Apple
Enhanced Contactless Polling(ECP)
Wireless Wan Data
4GTD-LTE(B34/B38/B39/B40/B41)
FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B19/B20/B25/B26/B28A/B28B/B66)
3GWCDMA(B1/B2/B4/B5/B8)
TD-SCDMA(B34/B39)
CDMA2000 1x EV-DO Rev.A BC0 (800MHz)
2GCDMA1x
GSM/EDGE/GPRS(850/900/1800/1900)
GPSGPS、A-GPS、BEIDOU、GLONASS、Galileo
High-precision RTK(Precision0.01m)(Optional)
Wireless Lan
WiFiIEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w
Working Channels2.4G: CH1~CH13(Depends on Country/Region)
5G: 36/38/40/42/44/46/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140/149/153/157/161/165(Depends on Country/Region)
SecurityEAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, PEAP-TLS, PEAP-GTC, PWD, SIM, AKA WEP, WPA/WPA2-PSK, WAPI certificate, WAPI-PSK
RoamingSupport PMKID caching, 802.11r, OKC
Wireless Pan
BluetoothBT4.2+BR/EDR+BLE
Environmental
Operating Temperature-20°C~60°C
Storage Temperature-40°C~70°C
Humidity5%RH~95%RH(non condensing)
Drop test1.2 meters
SealIP67(without fingerprint)
IP54(with fingerprint)
ESDAir ±15KV, Contact ±8KV


Download
Product Specification
Unimes U8100 1M
