Coldchain Handheld Computer
  • Unimes UK35

  • Unimes UK35

  • Unimes UK35

  • Unimes UK35

  • Unimes UK35

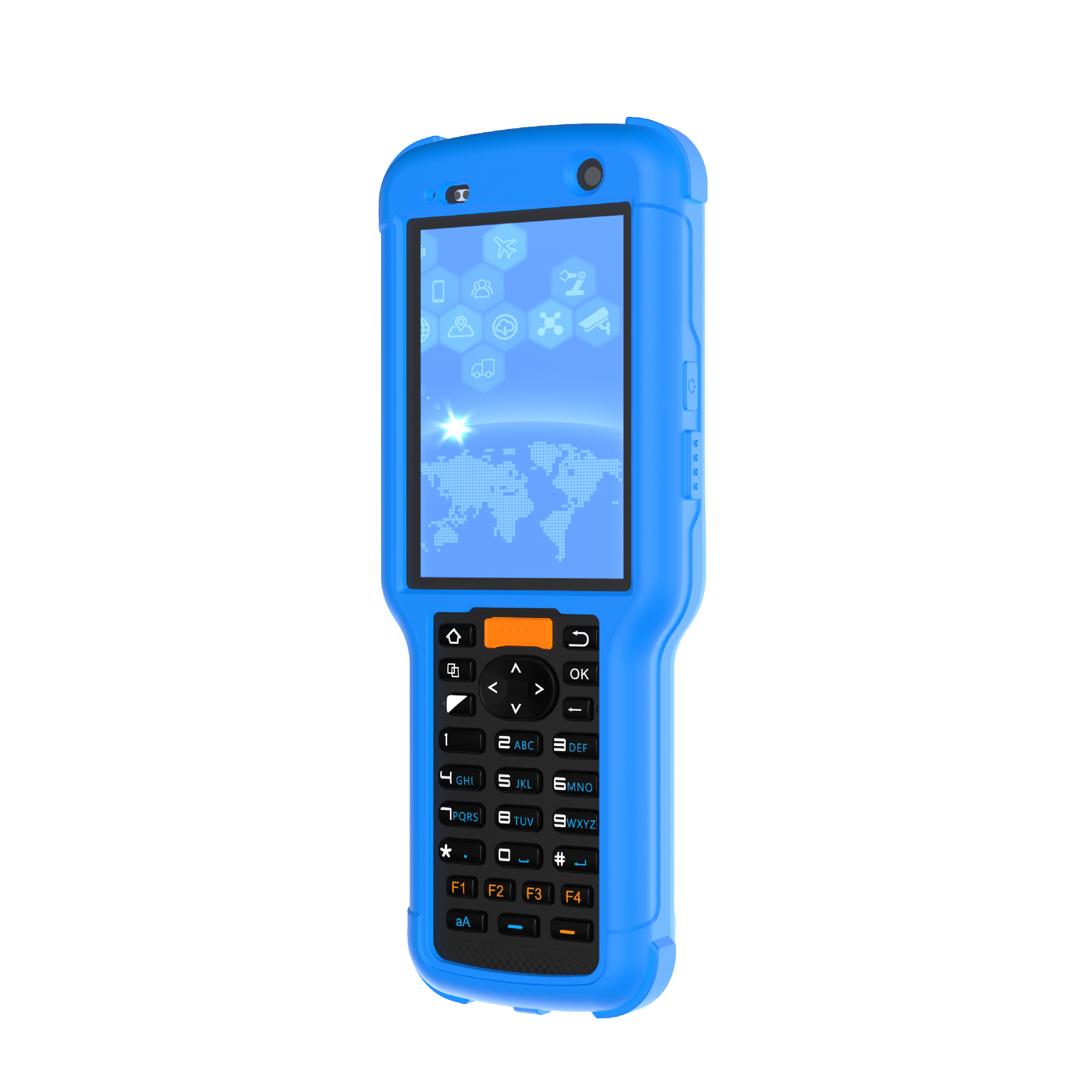

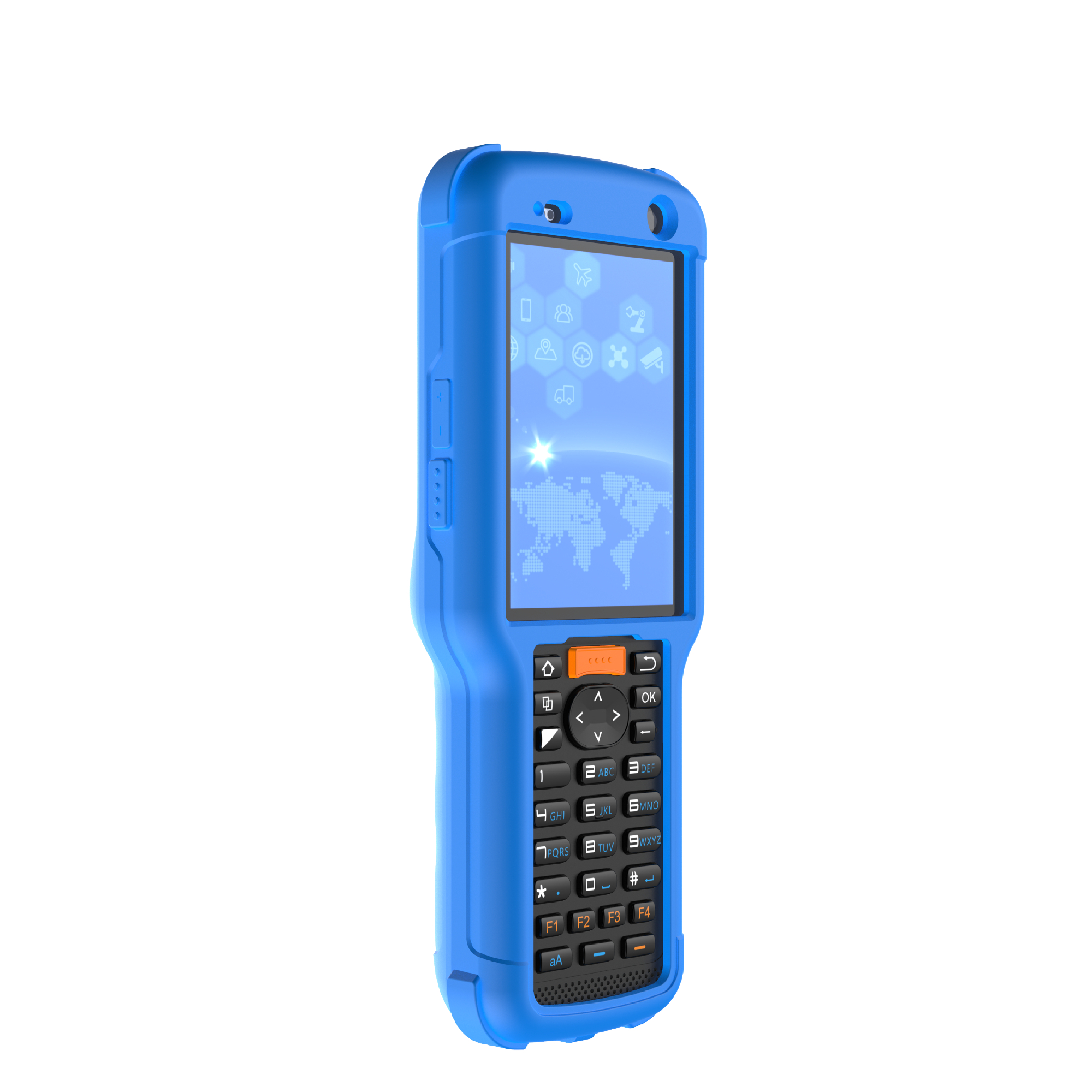

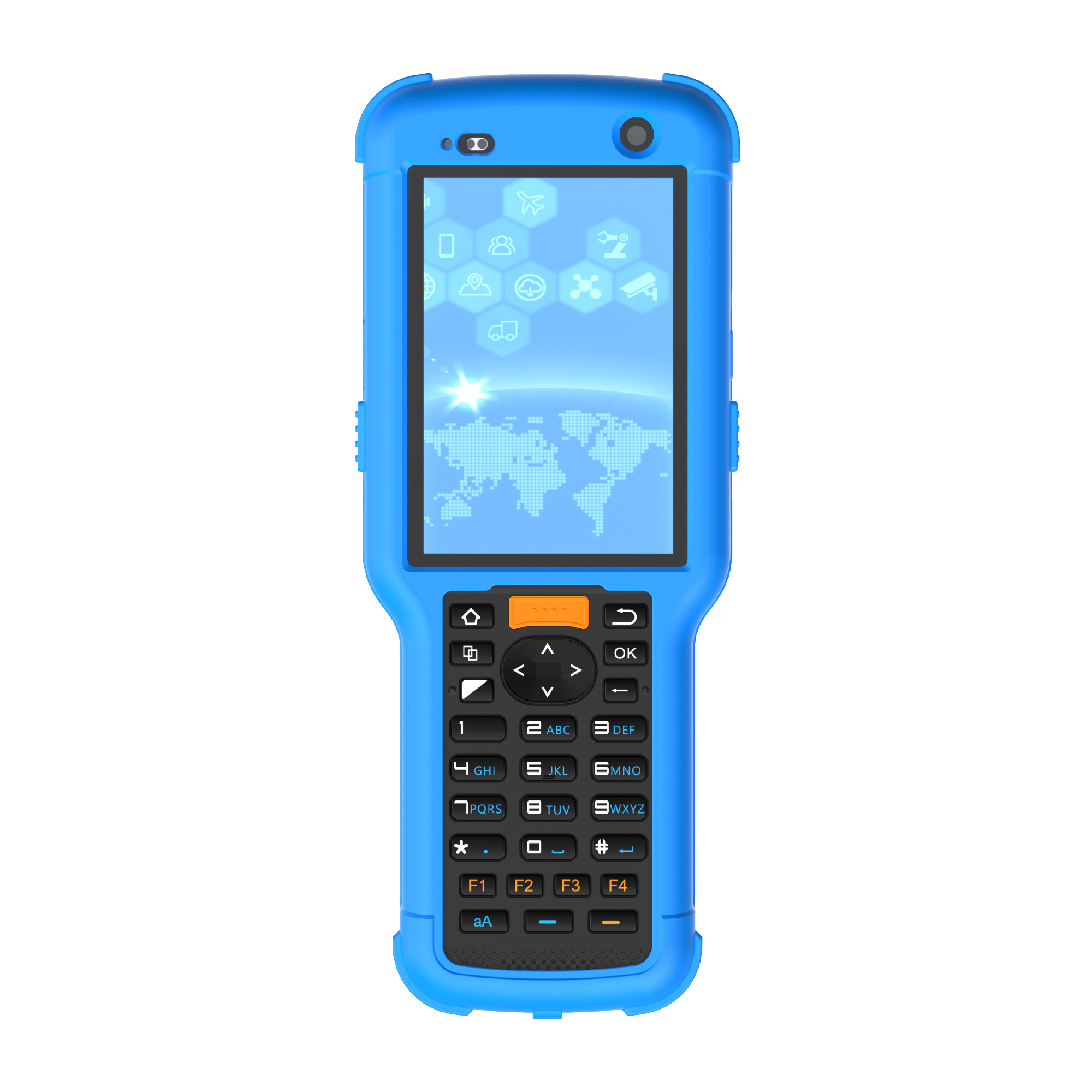

Unimes UK35

Coldchain/logistcs warehousing dedicated


Leading octa-core processor up to 2.0GHz, a complete farewell to lag and stutter

Android 8.1 mainstream operating system, simple to use and easier to develop

Removable 5200mAh battery with large capacity, lasting more than 10 hours of normal operation, with fast charging

With fast charging technology and support for dock chargers and other extensions, the performance is robust and the battery life anxiety is rejected



Features Specification Download
Unimes UK35

Worry-free application in -30℃ working environment


workplace temperature as high as 60℃ and is low as -40℃, IP65 protection level, no fear of water and dust invasion

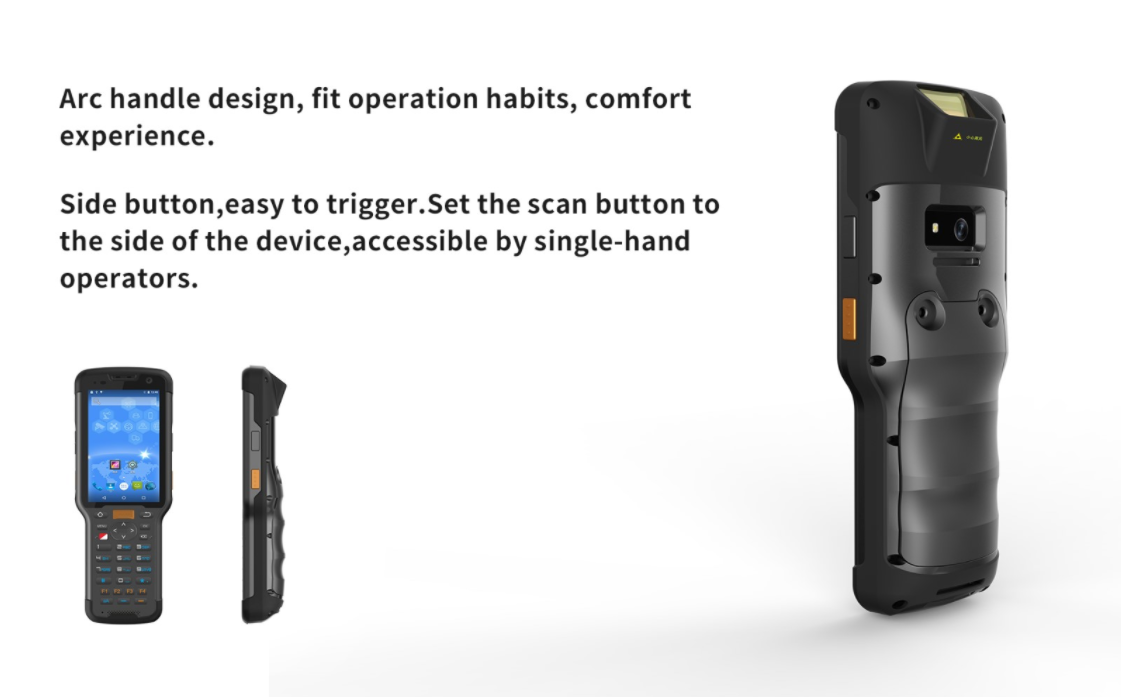

Physical button design to meet complex application scenarios, side button for easy triggering, 30° angle scanning engine, practical and comfortable

Unimes UK35

All-round data processing

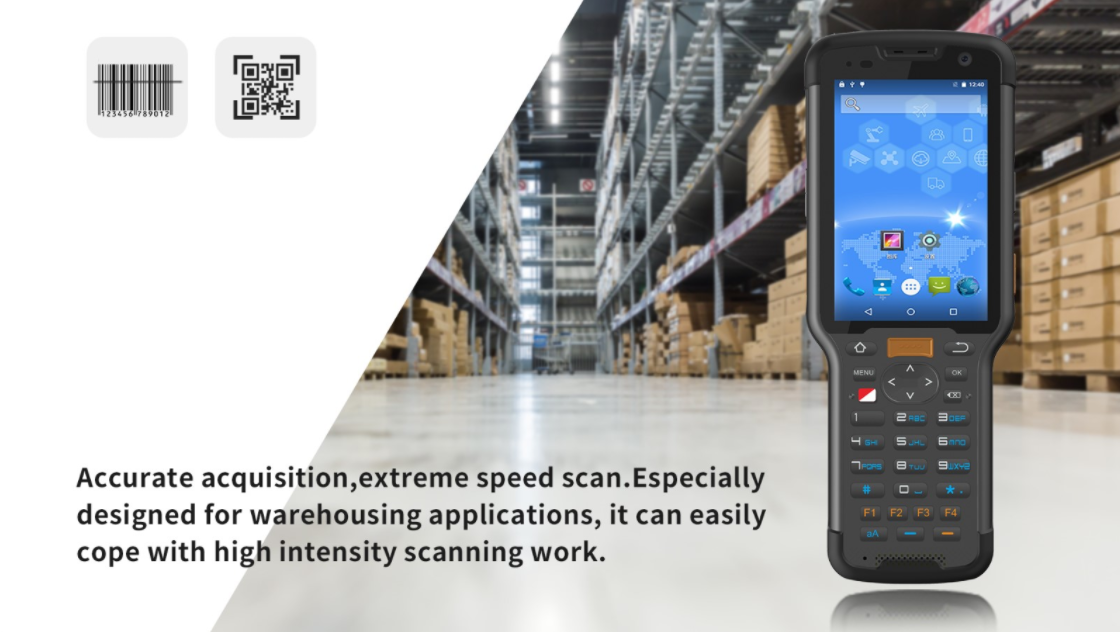

First-class scanning engine, stable decoding, and strong speed

Front Camera 5MP FF, Rear Camera 13 MP AF, easy to collect all kinds of clear images

Unimes UK35

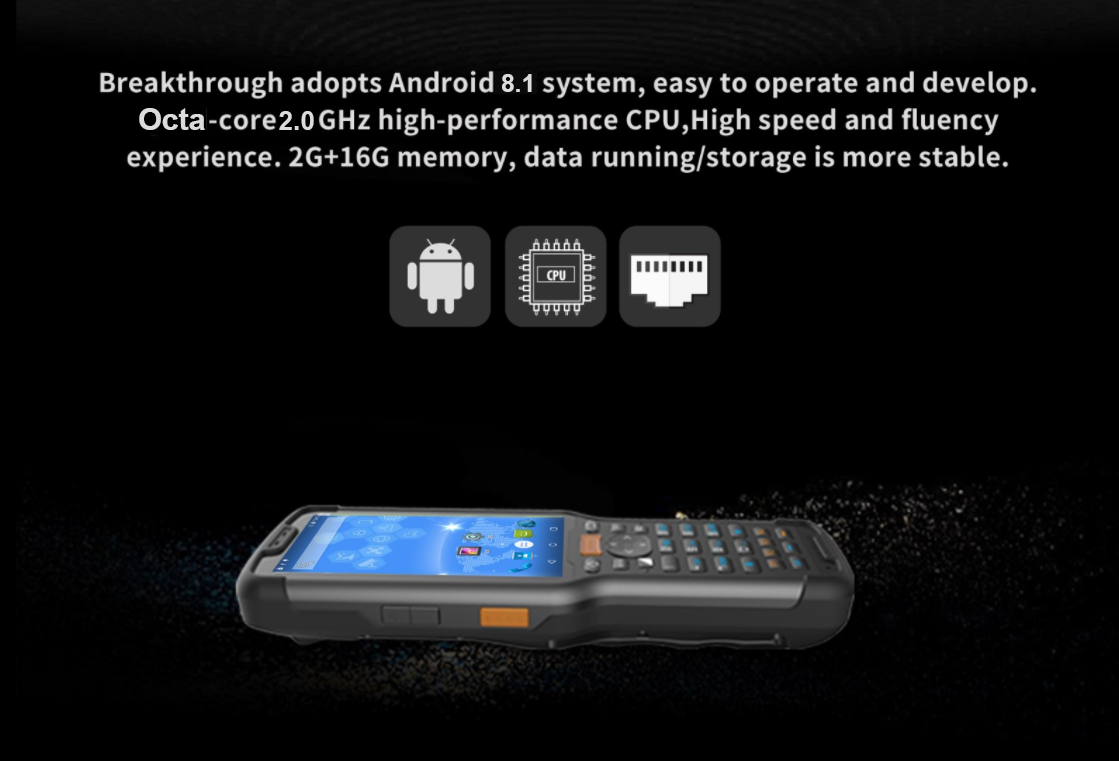

Extremely smooth, deep optimization



Top-quality components and a deeply optimised underlying system

Designed for coldchain scenarios, easily cope with high-intensity  scanning work, support NFC, with short-distance card reading ability

Unimes UK35

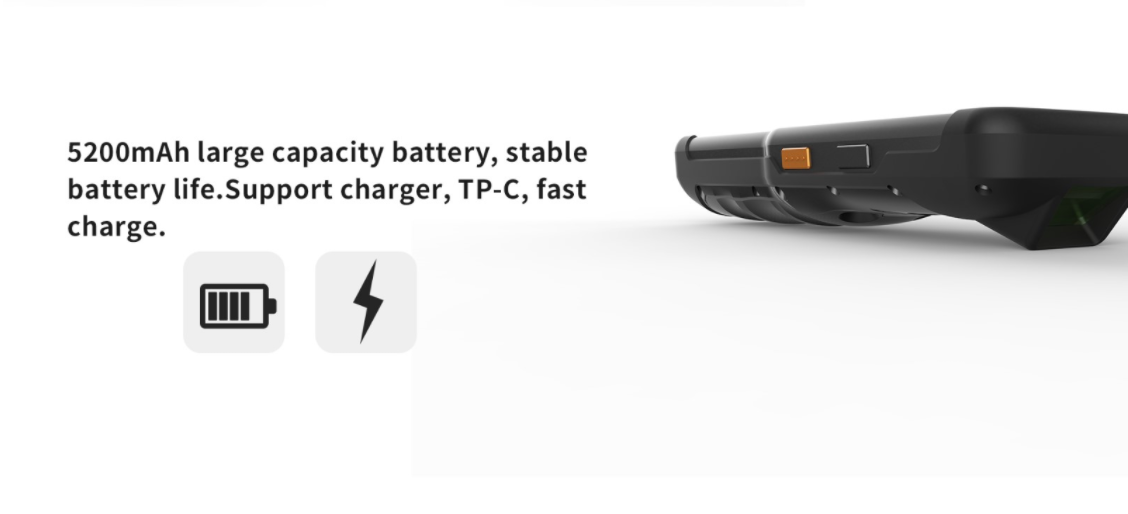

Worry free battery life


5200 mAh with 18650 industrial dual battery-cell, continuous normal operation for more than 10 hours

With fast charging Technology, support expansion such as docking station


Unimes UK35

Ultimate industrial design



Perfectly ergonomic body structure

Making work easier than ever, reducing costs and increasing efficiency

Unimes UK35

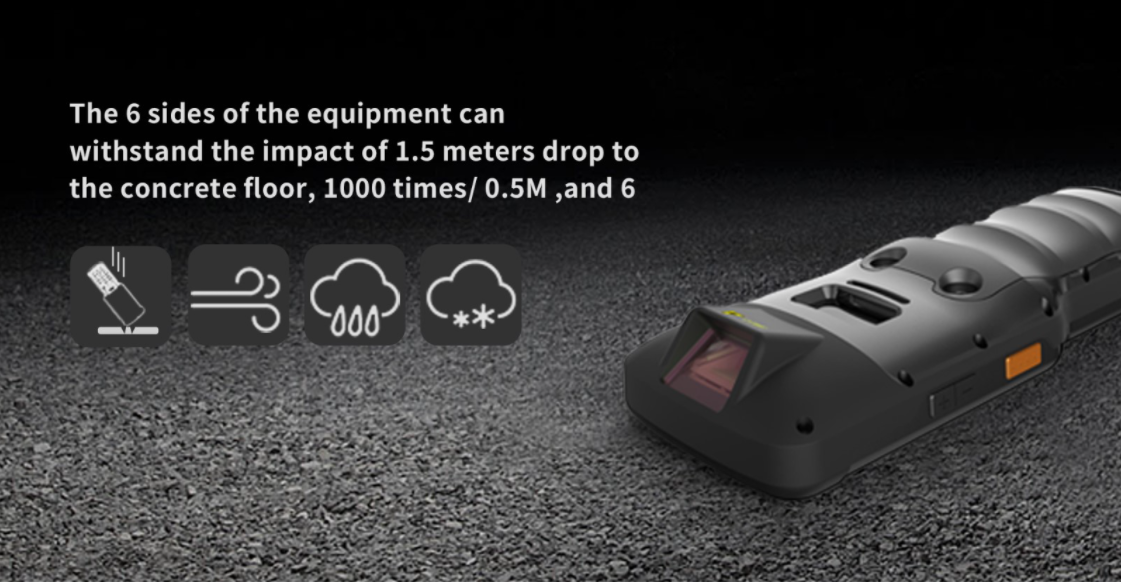

Outstanding industrial protection


Tough IP65 certification, no fear of wind, rain or mud

Complete fall protection to reduce maintenance costs

Unimes UK35

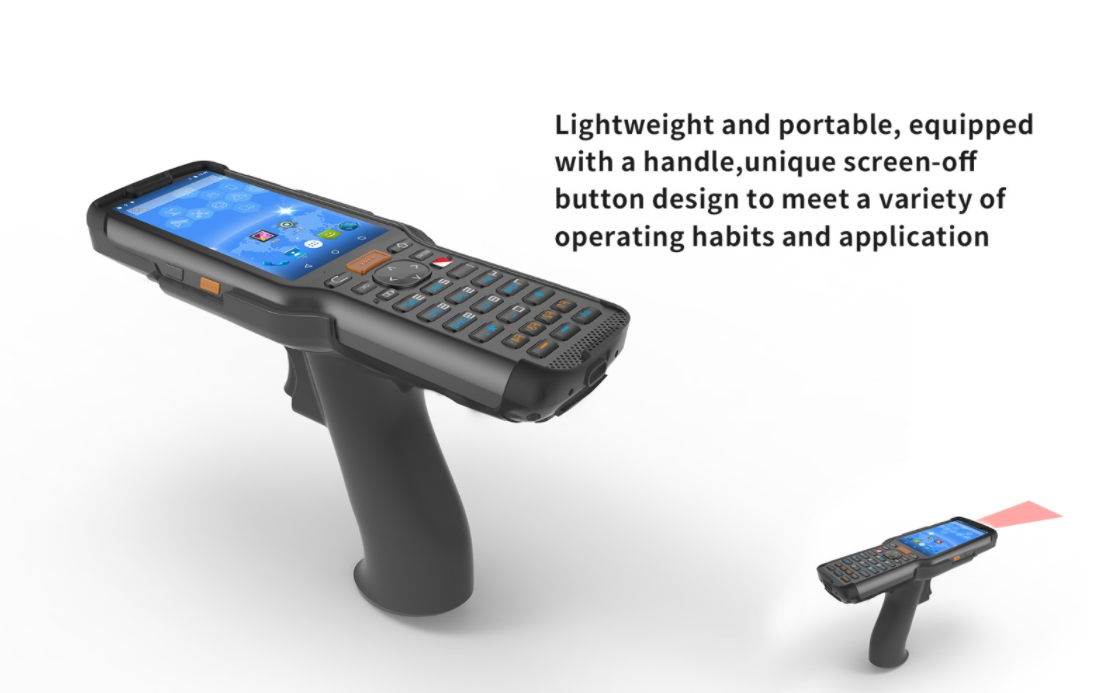

Professional extension accessories


Doing our best to improve the efficiency of our work

Details make the difference

Specification
ModelUK35
CPUOcta-core 2.0GHz
OSAndroid 8.1
RAM2GB
ROM16GB
CameraFront Camera 5MP FF, Rear camera 13MP AF , High brightness LED flash
Display size/type3.5 inch, IPS highlight screen
Resoulation640*960
Touch Screen5-point capacitive touch screen
Size185*70*32mm
Weight(with battery)300g
Battery capacity5200mAh
ChargingPE fast charging, full charged time<4 hours
BuletoothBT4.1 BLE
Wi-FiIEEE 802.11 a/b/g/n 2.4G 5Gdual frequency
WWLANFDD-LTE B1/B3/B7
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000   BC0
GPS positioning moduleGPS+BD+GLONASS
AudioFront dual stereo speakers, Volume 90db±3db(test distance 10cm)
SensorGsensor, Ambient light sensor,  Proximity Sensor, COMPASS
ExpansionMicro SD(TF) card slot up to 128GB
InterfaceUSB-Type C, support fast charging, OTG
charging and bottom USB connector; support cradle extension
Keypad35 buttons,  2 volume buttons, 1 power button, 2 function buttons
NotificationSound, Vbration, LED prompt
Operating temperature-40℃ to  +55℃
Storage temperature-40℃ to +70℃
Working Humidity5% to 95%
IP ClassIP65
Drop test6 sides can withstand the impact of 1.5 meters drop to the concrete floor
ESD±15kV Air Discharge, ±8kV Contact Discharge
CertificateCCC、CE
PSAM card (smart encryption card)optional
RFID(HF)ISO14443A/B, ISO15693, NFC reading distance: 0~5cm
Barcode scanning
Support code system
CM60
Support code system:EAN13, EAN8, UPCA, UPCE, Code 128, Code 39, Codabar, UCC/EAN128, RSS,ITF, ITF14, ITF6, ISSN, ISBN, Standard 25, Matrix 25,Industrial 25,Plessey, MSI Plessey, Code 11, Code 93, PDF417, QR Code, DataMatrix, AZTEC, Hanxin Code, Maxicode, Micro QR,Micro PDF417, Composite


Download
Product Specification
