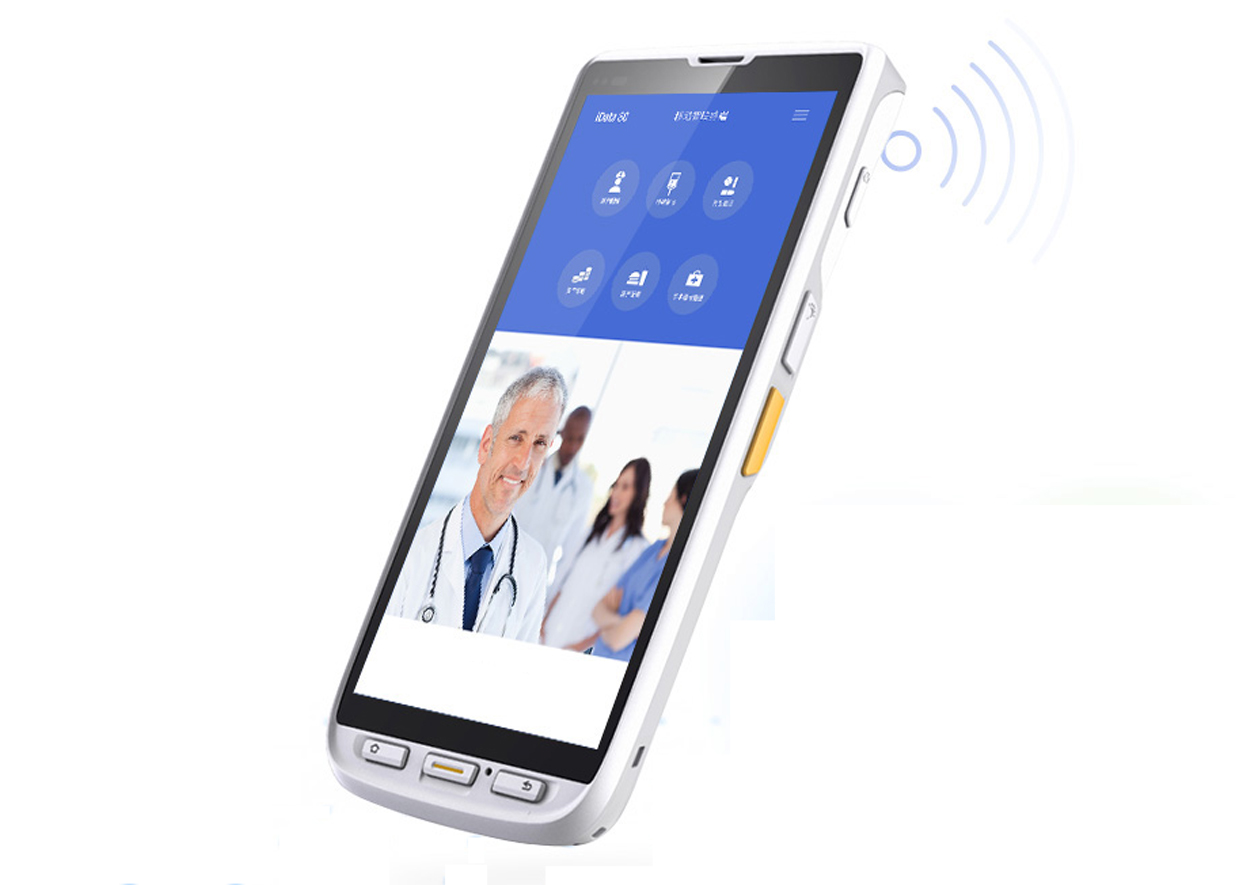

Specialized for medical use, pure white design perfect fit for medical environment.
5.7-inch extra-large HD screen, 18:9 full view display
Better to check the medical information
18:9 Full View Display Leading Design
The Leading 18:9 full view display: same vision as PDA and great handheld experience as a PDA
Medical Light
Equipped with an easy access to the flashlight, so as to facilitate medical personnel can easily collect the nursing data under different environments.
System Configuration | |
Operating system | Android 9.0 |
Processor | Octa-core 2.0 GHz |
Memory | 16 GB ROM+2 GB RAM (optional 128GB+6GB/64GB+4GB/32GB+3GB) |
Extended slot | Micro SD card, up to 256 GB |
Physical Parameter | |
Display screen | 5.7"1440x 720 (18:9 full view display) |
Touch Panel | Industrial-grade capacitive touch pane |
Camera(optional) | 8 MP autofocus camera in the back side, autofocus lens, LED flash(13 MP optional) |
Exit Window | Corning Gorilla glass |
Keypad | 3 front keys, 4 side keys, power key |
Battery | 3.8V 4000mAh rechargeable lithium polymer battery |
Audio | Built-in microphone /Type-C USB |
Notification | Vibrator alerts/LED/Audio notification |
Vibration Motor | Built-in programmable vibration motor |
Fingerprint module | Capacitive fingerprint module |
Structural Parameters | |
Dimensions | 164 mm x 79 mm x 15.5 mm |
Weight | 240g (battery included) |
Communication Transmission | |
Wireless WAN (Network frequency) | Asia & Europe: 2G：B2/B3/B5/B8 3G：WCDMA：B1/B5/B8 CDMA BC0 TD-SCDMA:B34/B39 4G：FDD-LTE：B1/B3/B5/B7/B8/B20 TDD-LTE：B34/B38/B39/B40/B41 America： 2G：B2/B3/B5 3G：B1/B2/B4/B5 CDMA BC0/BC1 (U.S.A) 4G:B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B4 |
Wireless WAN (Data service) | GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE |
Wireless LAN | Wi-Fi 802.11a/b/g/n/r/ac (Dual-band Wi-Fi: 2.4G+5G)Wi-Fi 5G PA Amplify
|
Bluetooth： | Bluetooth 5.0 LE |
GPS | Supporting GPS/AGPS/Glonass/Beidou Compass/Galileo |
Operating Environment | |
Development Tools | Android SDK+ JDK+Eclipse |
Programming Language | Java |
Operating Temp | -20℃ ~ 60℃ |
Storage Temp. | -40℃ ~ 60℃ battery included -40℃ ~ 70℃ battery not included |
Relative Humidity | 0 ～ 95% （No condensation） |
Drop Specification | 1.5-meter drops to concrete ground |
Protection grade | IP65 |
Electrostatic Discharge | Conforms to ±15 kV air discharge, ±8 kV direct discharge |
2D Area Imager | |
Scan Precision | 3mil c39/128 |
Rotate Angle | 360° |
Pitch Angle | ±45° |
Skew Tolerance | ±65° |
Laser Safety Grade | 1 scans /50ms |
Laser Safety Grade | 844(H)×640(V) |
Image Frame | 60fps |
Light Source System | White light, laser aiming |
Minimum Printing Contrast | 20% |
NFC | |
Frequency | 13.56 MHz |
Reading Distance | Within 50 mm |
Protocol | ISO14443A/14443B/15693 |
Input/Output Ports | |
USB interface | 1 (Type-C USB port) |
Charger Port | 1 |
Accessories | |
Standard accessories | Power adapter, Hand strap, Screen protector, USB cable, Single cradle |
Optional | Bottom charging cable, 4-slot device cradle, Carry case, Waist bag |
